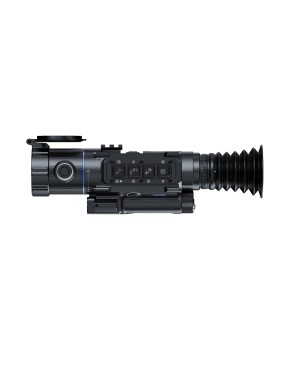

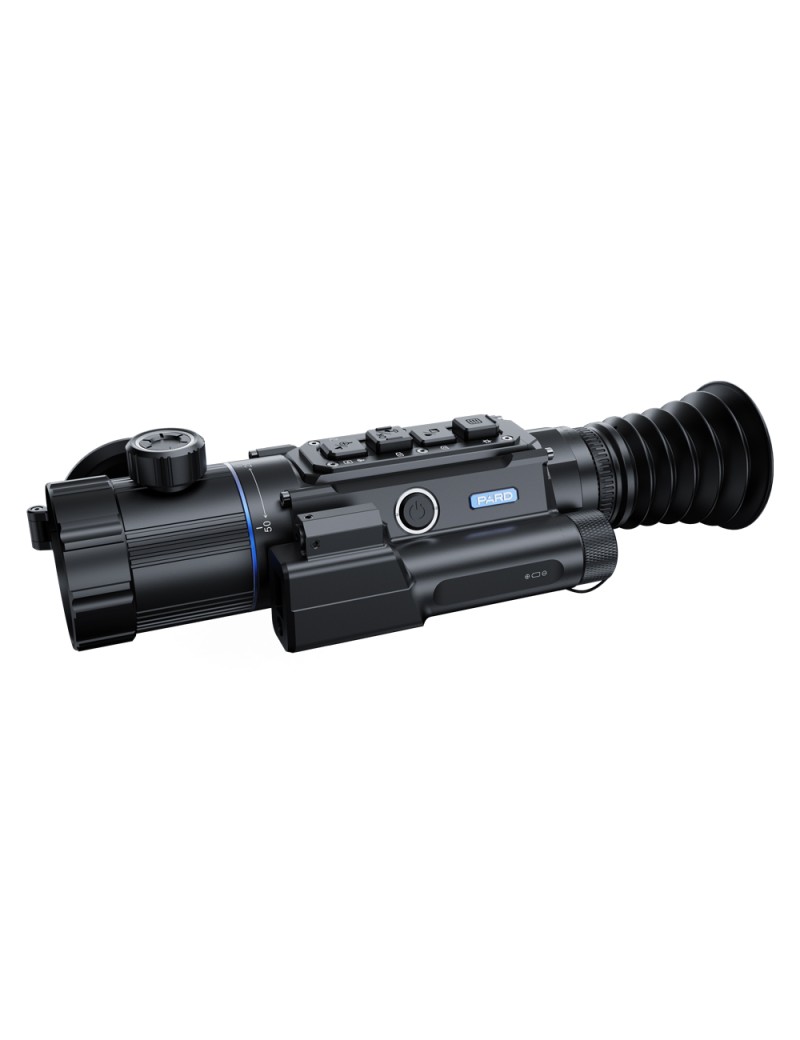

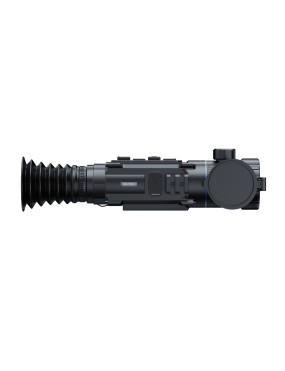

Ocelot Series Specification

"Items: Specification Specification

Model Ocelot 480 Ocelot 640

Classification Thermal Imaging Scope

Sensor

Type Uncooled VOx(vanadium oxide)

Resolution(px) 480*360        640*512

Pixel Size(µm) 12*12          12*12

NETD ≤20mK（0.020℃） ≤20mK（0.020℃）

Frame Rate(fps) 50

Detection Distance(m) 1800/2600 2600

Optics

Objective Lens(mm) 35/50    50

Optical Magnification(x) 2.3/3.3 2.5

Digital Zoom(x) 2/4/6/8

Field of view Horizontal 7.1°/5.0° 7.0°

Vertical 7.1°/5.0°                  7.0°

Diagonal 10.0°/7.0°                9.9°

Eye Relief(mm) 100 100

Diopter Adjustment(D) - 5~3

Display

Type IPS

Resolution(px) 800*800

Reticle Style 6

Reticle Color Red/White/Yellow/Green

Scene Mode City/Rain/Forest

Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
